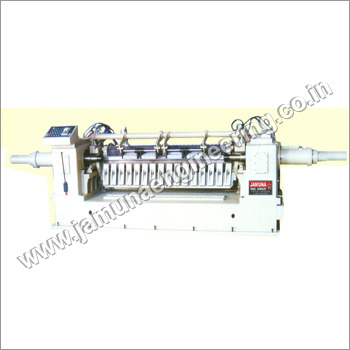

Rotary Veneer Lathe Machine

Our vast gamut of products indexes Rotary Veneer Lathe Machine that is very popular in the market. These products are used in varied wood processing units for peeling of different types of logs. With the help of single spindles, these products help in turning logs without skin into resized veneers. The auto knife installation system along with auto tool carriage feeding system ensures the optimum functioning of these machines. In order to abide by the deadlines provided by the clients, Rotary Veneer Lathe Machine is delivered to the clients in an quick and prompt manner.

Technical Specifications:

This Model is Fully Automatic Fitted With Heavy Duty Back-Up Rollers.

• Body: M.S. Fabricated 25 M.M.
• Spindle: Special Alloy Steel Fitted with Hydraulic System.
• Feed Screw: Special Alloy Steel Fitted with Ball Roller Nut.
• Gear Box: TATA 60.
• Transmission: Through Four Line Chain Sprockets.
• Back-Up Roller Cylinder: Hydraulic GERMANY Imported Cylinder.
• Pressure Bar Cylinder: JANATIC Company Cylinder.
• Clutch Cylinder: JANATIC Company Cylinder.
• Swing DIA: 800 M.M.
• Spindle Revolution: 200 M.M.
• End Core DIA: 70 M.M.
• Core Thickness: 0.25 M.M. to 4 M.M.
• Cutting Length: 2750 M.M.
• Main Motor: 50 H.P. 1440 RPM.
• Compressure Motor: 5 H.P. 1440 RPM.
• Power Pack Motor: 5 H.P. 1440 RPM.
• Clutch and Brake: Imported Company Disc Brake.
• Compressure: KIRLOSKAR Company.
• Hydraulic Valves: POLYHYDRON Company.
• Pneumatic Fitting: JANATIC Company.
• With Conveyer and Pneumatic Clipper and Reeling.
